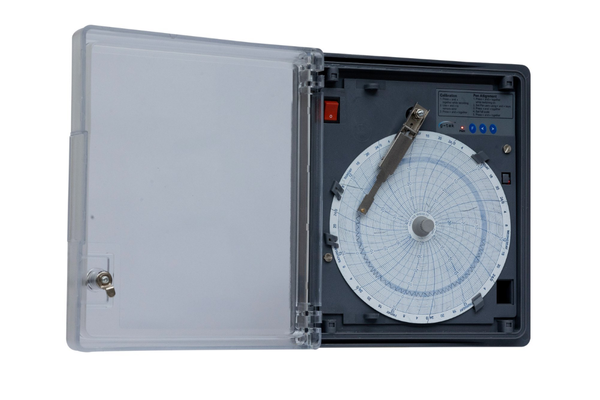

Chart Recorders
Overview
Our Chart Recorders provide accurate and continuous monitoring of pressure, temperature, and flow data in real-time. These instruments are essential for industries requiring precise data recording and compliance with standards.
They are widely used in testing, calibration, and field operations to validate performance and maintain operational safety.
Clients benefit from reliable data logging, enhanced decision-making, and improved operational efficiency.
Applications & Features
We provide high-quality chart recorders designed for field reliability and accuracy. All equipment is calibrated and maintained to ensure flawless performance in critical operations.
Our chart recorders Specifications:
- Available from 6 Barg to 2,000 Barg / 100 PSIG to 30,000 PSIG.
- Temperature range upto 0-100 degree C.
- 12" chart recorder with SS body, Chart drive from 2/8 hr to 24/7 hr clock, Hose connection 1/4" BSP
- Pressure recorders available in either Barg or PSIG scales.
- Accurate to 1% of Full Scale Deflection. Comes with calibration certificate
- Mechanical dual clock mechanism available in 2-hour/8-hour and 24-hour/7-day durations.
Typical Overall Dimensions : 60cms x 37cms x 21cms
Typical Approximate Weight: 12kgs
Key Benefits
Accurate Recording
Ensures precise and reliable logging of pressure and temperature values.
Data Security
Maintains consistent performance with tamper-proof recording systems.
Operational Reliability
Supports critical testing processes with dependable and durable equipment.
